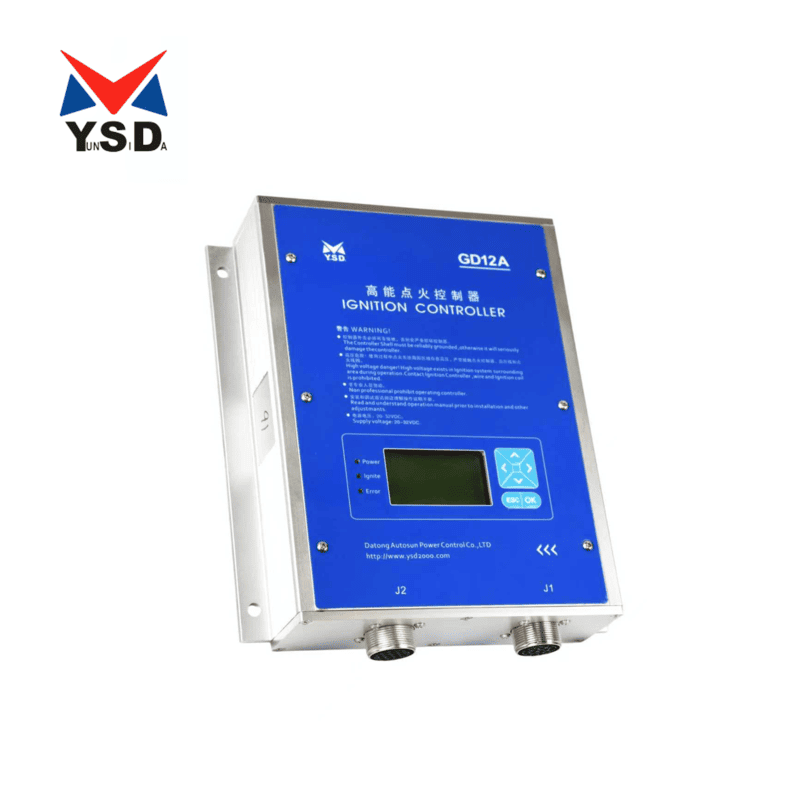

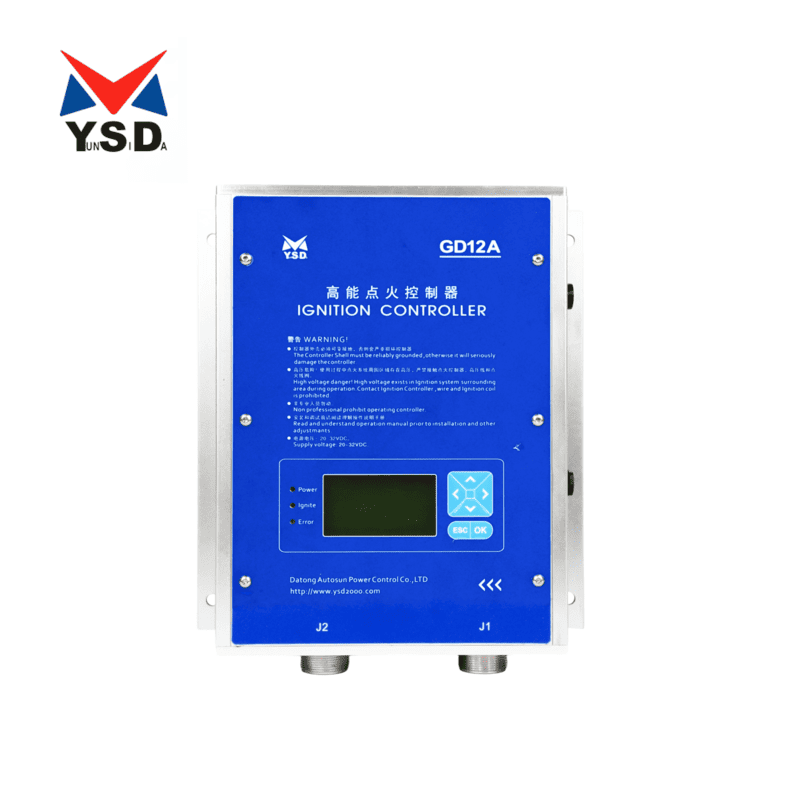

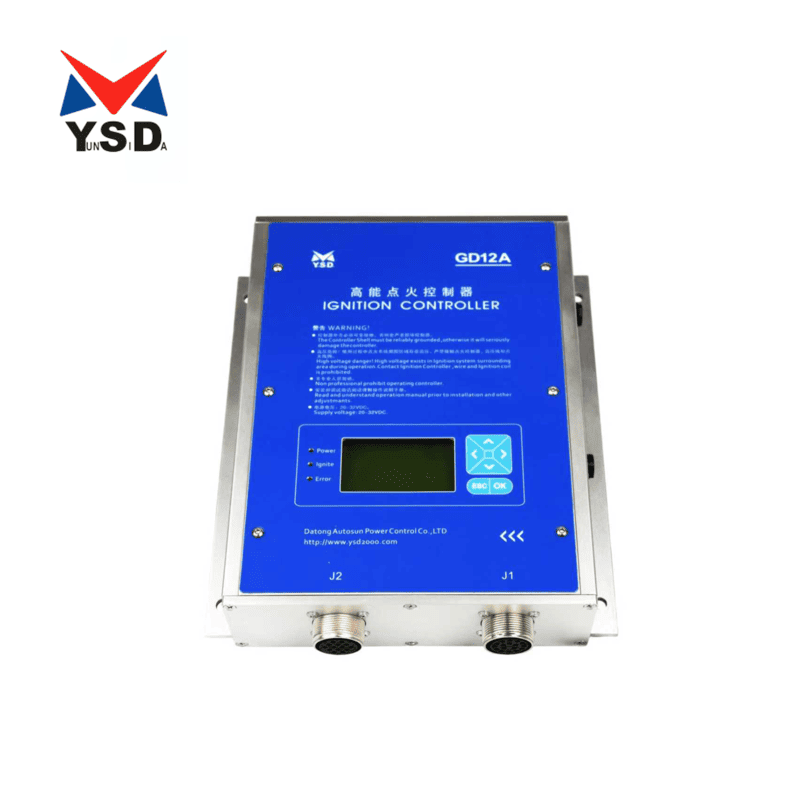

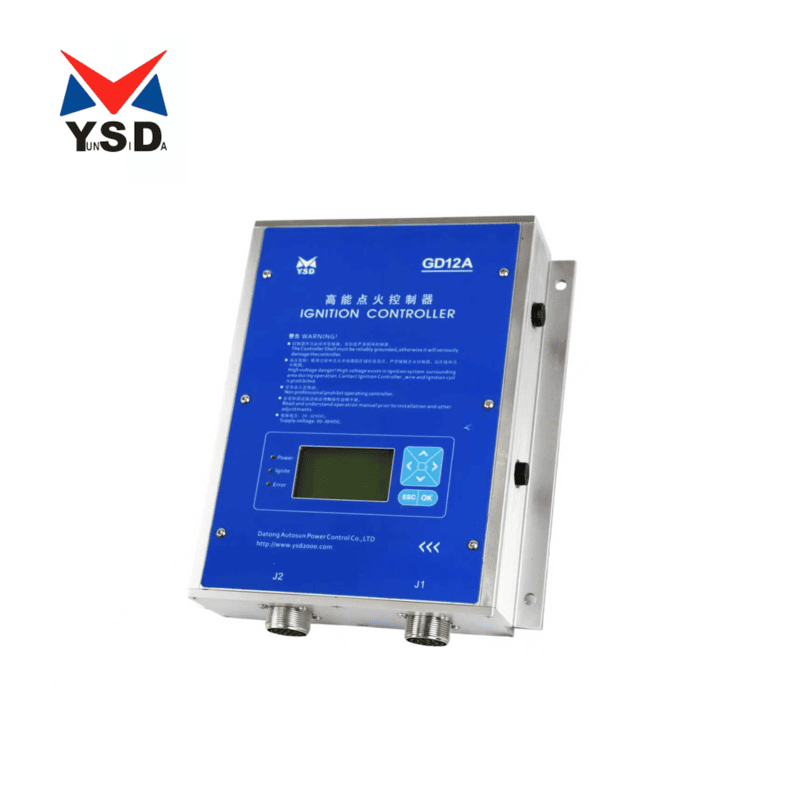

Biogas Generator 12 Cylinder Ignition Controller Motortech Mic3 Altronic Heinzmann GD12A Gas Genset Ignition Controller

  • Description
  • Product Parameter Table

GD12A High-Energy Ignition Controller is the latest development of our company for company for Gas Engine which applicable to a variety of gas & fuel in the large multi-cylinder inline and 12 cylinder V-type engine. The product features high ignition energy, high reliability, wide range of applications, long life and other prominent advantages. With LCD display, it could display real-time ignition energy, ignition advance angle, engine speed and other operating information. It also provides function button which could set ignition energy and ignition advance angle and other operating parameters based on the engine displacement and gas methane content.

Supply voltage 20V~32V
Operating current Maximum 7.0A
Power 24V maximum power 100W
Output 12 connect output
Output voltage 250V
Ignition output energy 100mJ~500mJ
Outline dimension 258mm*292mm*66mm
