Natural gas/biogas generator set Rated power:120KW
Voltage frequency:400V/50Hz
Product introduction
The WL120-CNG series gas generator set is an automated generator set specially developed for natural gas and biogas by our company using advanced domestic and foreign technologies and integrating many years of market experience. This unit can meet the full-load power generation requirements of low-concentration biogas (CH4≥30%). After our rigorous engine structure upgrades and combustion technology development, this series of natural gas and biogas generator sets have the characteristics of high efficiency, low energy consumption, easy maintenance, and high reliability to meet customer needs.
Energy efficient
The unit adopts our company independently developed large excess air coefficient combustion organization technology and digital boost matching technology to ensure that the unit achieves lean combustion in the full power range and accurately controls the excess air coefficient ≥ 1.5. The engine adopts our gas composition adaptive technology, which can automatically adapt to natural gas and biogas of various concentrations and calorific values, enabling the engine to achieve rapid combustion, even operation of each cylinder, and improve power generation efficiency when using natural gas and biogas.
High reliability
The unit uses a stable and mature engine, which has been upgraded with our technology and replaced with specially developed engine cylinder liners, pistons, valves, camshafts and other easy-to-wear parts. This has overall improved the engine's high temperature resistance and corrosion resistance, significantly improving its performance of reliability.
Low operation and maintenance costs
All components of the unit have been verified through rigorous simulation tests and 8,000 hours of full-load field use. The oil consumption rate of the gas engine upgraded by our company has been greatly reduced, and the oil replacement interval is ≥1000h. The spare parts developed for the unit are all at market prices, and combined with the long maintenance cycle of the unit, maintenance costs are significantly reduced.
Security
The unit is equipped with a high-end monitoring and control system, equipped with single-cylinder temperature monitoring, single-cylinder exhaust temperature monitoring, and single-cylinder ignition angle adjustment to ensure stable operation of the unit in real time. The unit is equipped with explosion-proof valves, real-time water temperature and oil pressure monitoring, and gas leakage alarms to ensure the safety of the unit.
Alternator
Mature high-end generators in the unit supporting industry have the advantages of high power generation efficiency, low temperature rise, low waveform distortion rate, good dynamic performance, and stable AVR parallel operation. They have first-class reliability and durability and can meet the needs of various harsh environments. Requirements.
Service concept and purpose
Our company is customer-centered and quality-based to provide efficient, high-quality and fast technical support and after-sales service for every gas generator set purchased by customers.
Standard scope of supply:
NO | Part name | unit | Quantity | Remark |
1 | Gas engine | unit | 1 | Including silencer and bellows |
2 | Alternator | unit | 1 | |
3 | Radiator | unit | 1 | |
4 | Public base | unit | 1 | |
5 | Genset control cabinet | unit | 1 | Contains control module, control system, |
link harness | ||||

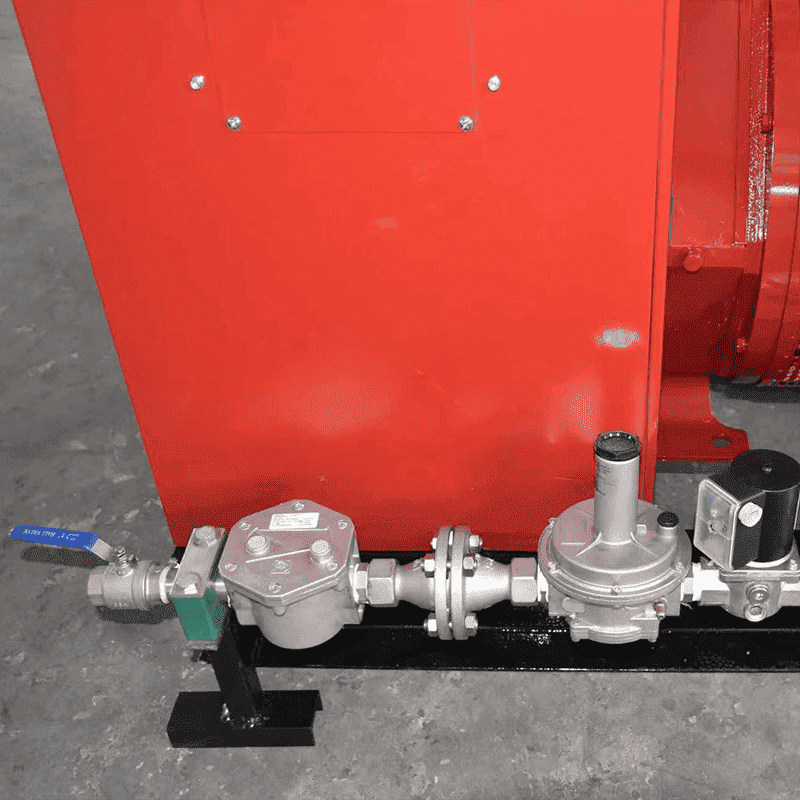

6 | Intake valve group | unit | 1 | Contains pressure reducing valve, solenoid |
valve, flame arrester, filter | ||||
7 | Battery | unit | 1 | |
8 | Tool | unit | 1 | Spark plug removal tool, filter element |
removal tool | ||||
9 | Data | unit | 1 | Instructions for use and maintenance |
manuals |
Optional scope of supply:
NO | Part name | unit | Quantity | Remark |
1 | Container | unit | 1 | |
2 | Acoustic panels | unit | 1 | |
3 | gas leak alarm | unit | 1 | Contains leakage alarm shutdown, leakage gas shut-off, leakage concentration |
4 | Engineering customization | unit | 1 | Containers can be customized according to |
customer requirements |
Standard control functions:
Basic | Power switch, manual/automatic start, manual/automatic stop, manual/automatic closing and opening control, etc. |
functions: | |
Display | Engine speed, oil pressure, coolant temperature, coolant level, exhaust temperature, cylinder |
function: | temperature, unit operating time, cumulative number of starts, battery voltage, phase voltage, line voltage, current, frequency, phase sequence, active power, Reactive power, apparent power, power factor, accumulated power generation, shutdown fault storage, etc. |
Protective | Overspeed, underspeed, overvoltage, undervoltage, overfrequency, underfrequency, overcurrent, |
function: | overpower, low oil pressure, high water temperature, high exhaust temperature alarm, high cylinder temperature alarm, low battery voltage, charging failure, etc. |
Gas filtration standards:
Filter criteria: | 1 、hydrogen sulfide H2S<200mg/Nm³。 |
2 、Impurity particle content<30mg/Nm³。 | |
3 、Impurity particle diameter<5μm。 | |
4 、Water content in gas<20g/Nm³。 | |
5 、Gas temperature<40℃。 | |
Note: Gas filtration that meets the above conditions can effectively extend the service life of the generator set. |

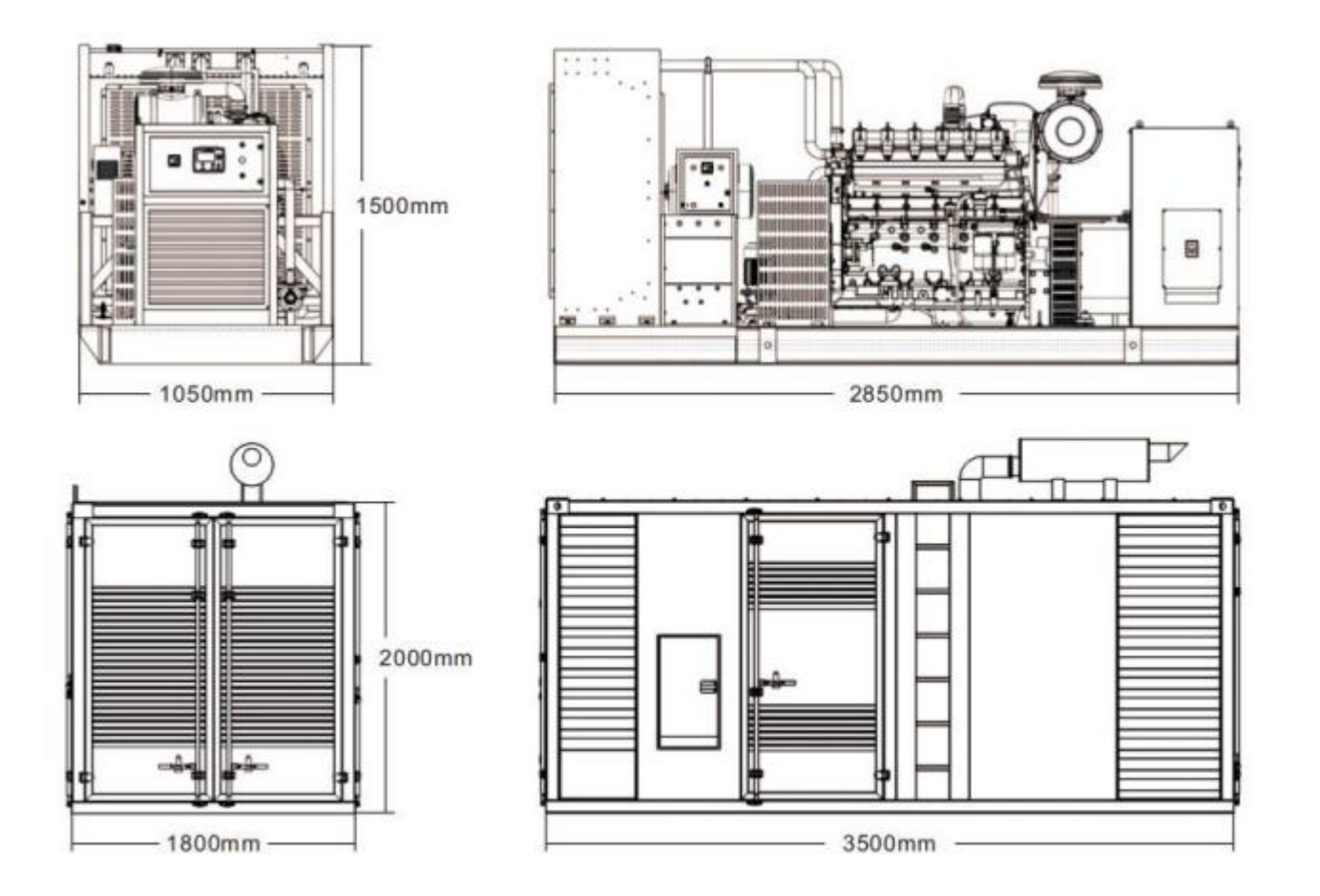

Genset size parameters:
Precautions for use:
1 、The generator is not grounded when leaving the factory and must be properly grounded according to site regulations. |
2 、The unit must be placed in a location that ensures thorough ventilation. Closed workshops must be equipped with a forced ventilation system. |
3 、 It is recommended to use flanges for gas pipeline connections, and strictly inspect them after completion to ensure there are no leaks. |
4 、Special engine oil for gas generator sets must be used, and the coolant must use antifreeze with a freezing point lower than the lowest local ambient temperature. |
5 、Please do not modify the unit without permission. If necessary, please contact the manufacturer in time. |
